Walk round Mai Star II on a sunny friday evening

https://youtu.be/tf1xr-ajwzg

 A walk round Mai Star II of a sunny Friday evening showing off the work that my apprentice as done on the inside of Mai Star II and the further challenges he and I have when we start on leveling and taking the twist out of the hull, which can be seen from the plump lines at both ends the aft is not so badly out of level however, the stem is almost an one and a half inches out of level. So there is going to be a lot of shores and braces put on the hull in different places to pull out the twist before any work can start on refitting the deck beams andany of major work to the hull and deck and in time refitting the cabin sides and roof..

Comments

Post a Comment

Popular posts from this blog

Work done today on Mai Star II

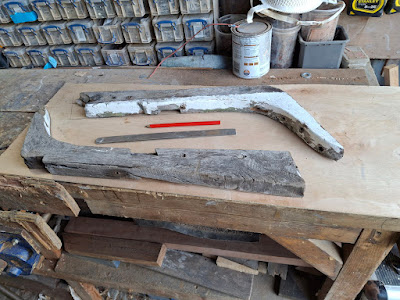

Having removed the lower section of the first frame to have a lower section across the keel/hog. It is time to make a pattern of the piece and go through the oak pile to find some suitable pieces of oak to make up a new lower section which connects together  the two frames in the hull at the forward end of the keel bolts.  Another jobwe did was to remove as much of the rotten section of lower forefoot which the samson post mortised into when it was in position. The new forefoot will be made out of some of the seasoned oak  we have in the yard and will likely be made up of two pieces glued together to make up the correct thickness. and then new bolts will be made up and the fore foot will then be bedded on a bed of red lead putty and thick paint.  The three bolts were able to be moved in their holes which is a good sign and will make it easier to put new bolts in to the holes. possibly go up a size and bore new holes through the outer part of the hog/keel. Just placin...
Read more

Making patterns of the two foredeck lodging knees and inspecting the deck bems to see which of them can be salvaged and which need remaking.

Making plywood patterns of the to foredeck lodging knees which are on either side of the deck beam which holds the samson post deck plate Having sorted out the deck beams from the other deck bits it was time to inspect which can be salvaged and which will need to be remade using laminated oak to make up the new deck beams. Many of the deck beams are in reasonable condition. while others are a mess with bits missing off the ends and others rotten in place. The deck beam in the middle is completely shot and the only thing that can be used for is a pattern. The other deck parts such as carlins and coamings are under bench until we get round to making new bits later. All the varnished parts are under a cover until we are ready to work on them.
Read more

The frame and inner hog repairs now done and now its time to make up and steam the ribs in place.

The inner hog pieces now replaced and ready to be screwed and bedded down on a mixture of  red lead powder and linseed putty in the same method the original inner hog pieces were fitted almost 80 years ago. The frames are all dry fitted and the same method to be used on the frames as are the inner hog pieces. The same method will be used on these port side frames  The grown floor which as come out of here will be replaced with a laminated oak as it is difficult to source a piece of oak with the grain pattern to make a new floor.
Read more
